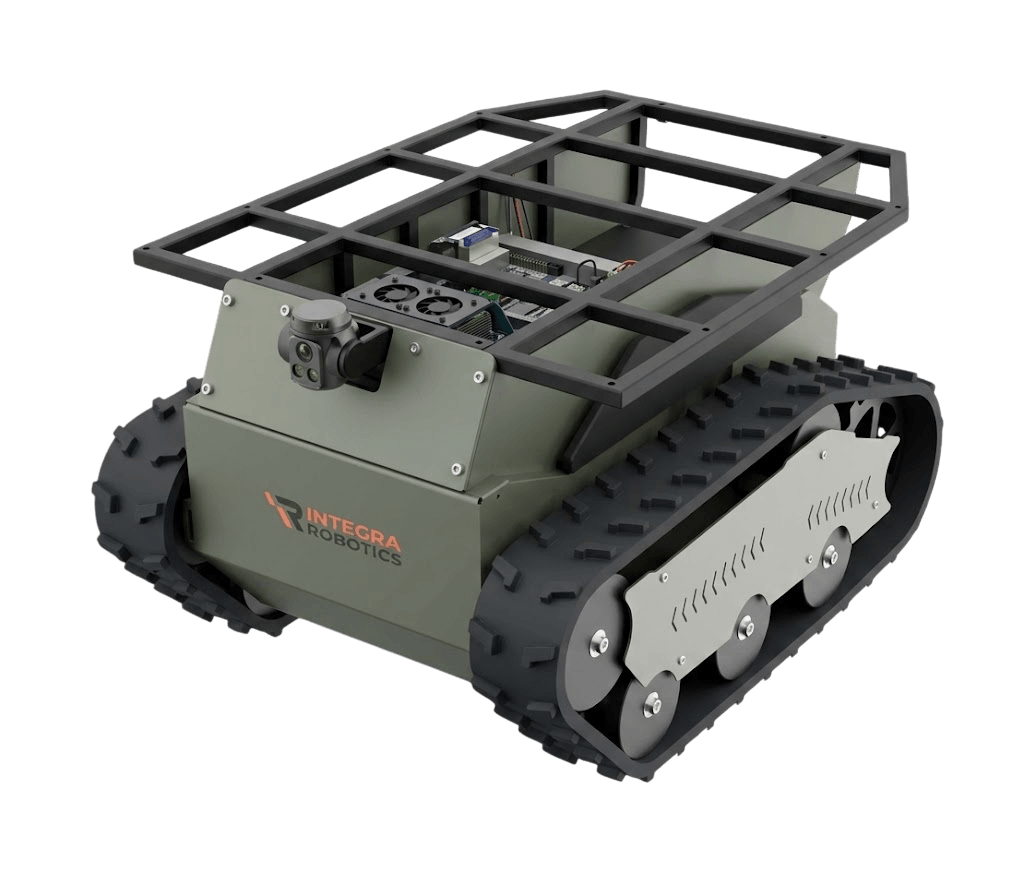

A rugged, tracked unmanned ground vehicle built for dual-use industrial automation and defence/security operations. Built with Kevlar-reinforced tracks, high-torque drivetrain, onboard stereo vision, and remote operation for challenging field environments.
TECHNICAL SPECIFICATIONS
Complete mechanical, electrical, and mobility parameters engineered for mission-critical reliability in industrial and hazardous environments.
Chassis
Mild-steel chassis with protective vinyl coating
Gross / Net Weight
220 kg GVW / 200 kg net vehicle weight
Max Mounted Payload
500 kg
Max Drag Payload (Wheeled)
600 kg
Max Speed (No Load)
8 km/h
Speed @ Max Payload
3.5 km/h (mounted / drag)
Climb Angle (No Load)
30°
Inclination @ Max Load
25° (mounted) / 28° (drag)
Drive System
MTL rubber tracks with Kevlar reinforcement
Track Loop Length
2400 mm
Sprockets & Idlers
60% nylon / 40% mild-steel
Drivetrain Torque
144 Nm rated torque
Turning Radius
Zero-radius turning (differential drive)
Battery Chemistry
LiFePO₄ 48 V / 105 Ah (5040 W, in-built Smart BMS)
Runtime
Approximately 2 hours at maximum payload
Charging Time
~5 hours at 20 A / 54.6 V (IP54 charger)
Overall IP Rating
IP56 (Dust and water splash resistant)
Front Camera
PRO-W-POE stereo camera (127° V-FOV, 79.5° D-FOV, Night Vision)
Rear Camera
C-300 wide-focused camera (78° to 150° D-FOV)
Communication
UDP protocol, encrypted wireless, hybrid wired/wireless (CAT-6 1 Gbps)
Operational Range
300 m line-of-sight / 80 m non-line-of-sight (Metal 52ac, 2.4 GHz, 6 dBi)
Operator Station
Android Unreal Engine app, 10.5" touchscreen, 256 Wh LFP power pack, Pelican case
Safety & Compliances
ISO 13850 Stop Category 0, ISO 10218-2011, IEC 61508, RoHS, CE, FCC
SERVICE & SUPPORT
Designed for heavy-duty industrial automation and field tasks, the UGV platform is backed by expert technical support, rapid integration assistance, and responsive service.
Pre-configured with Android Unreal Engine control station and hybrid wireless link. Connect, power on, and deploy — no complex on-site calibration required.
144 Nm high-torque drivetrain moves 500 kg mounted payloads or 600 kg wheeled drag across factory floors, warehouses, and rough outdoor yards.
Reinforced top mounting surface easily integrates 6-axis cobots, custom fixtures, inspection sensors, drone launch bays, or maintenance tooling.
Direct support from robotics application engineers. Backed by certified Factory Acceptance Testing (FAT) and customized service SLAs.
FIELD-PROVEN DEPLOYMENTS
If your operation requires moving 500kg payloads across factory floors, machine tending in tight cells, transporting inspection sensors through utility corridors, or traversing rugged outdoor yards — the UGV platform was built for you.
