P3-R600
3 kg payload, 600 mm reach. Ideal for bench tops, tight spaces, and safe collaboration.
View specifications

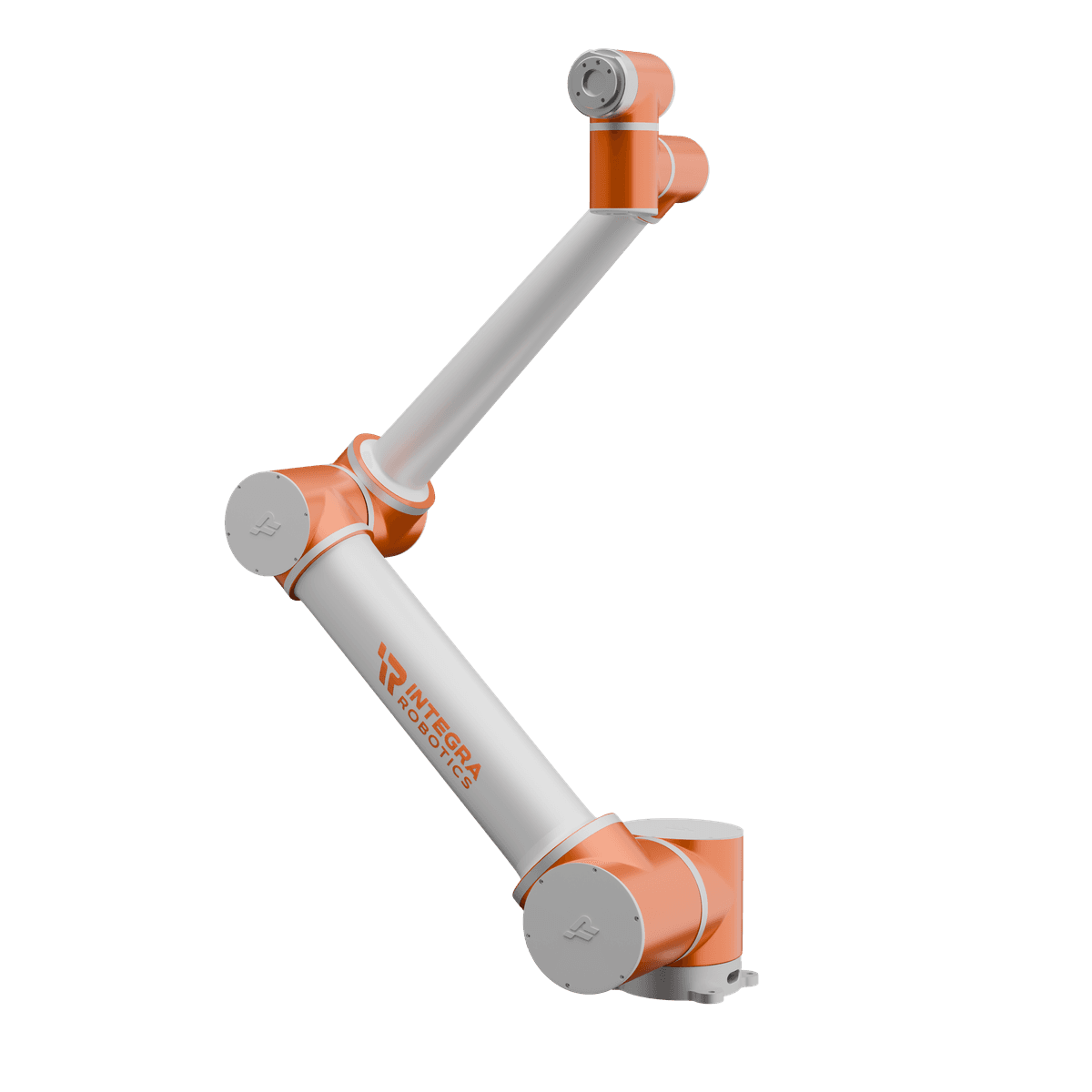

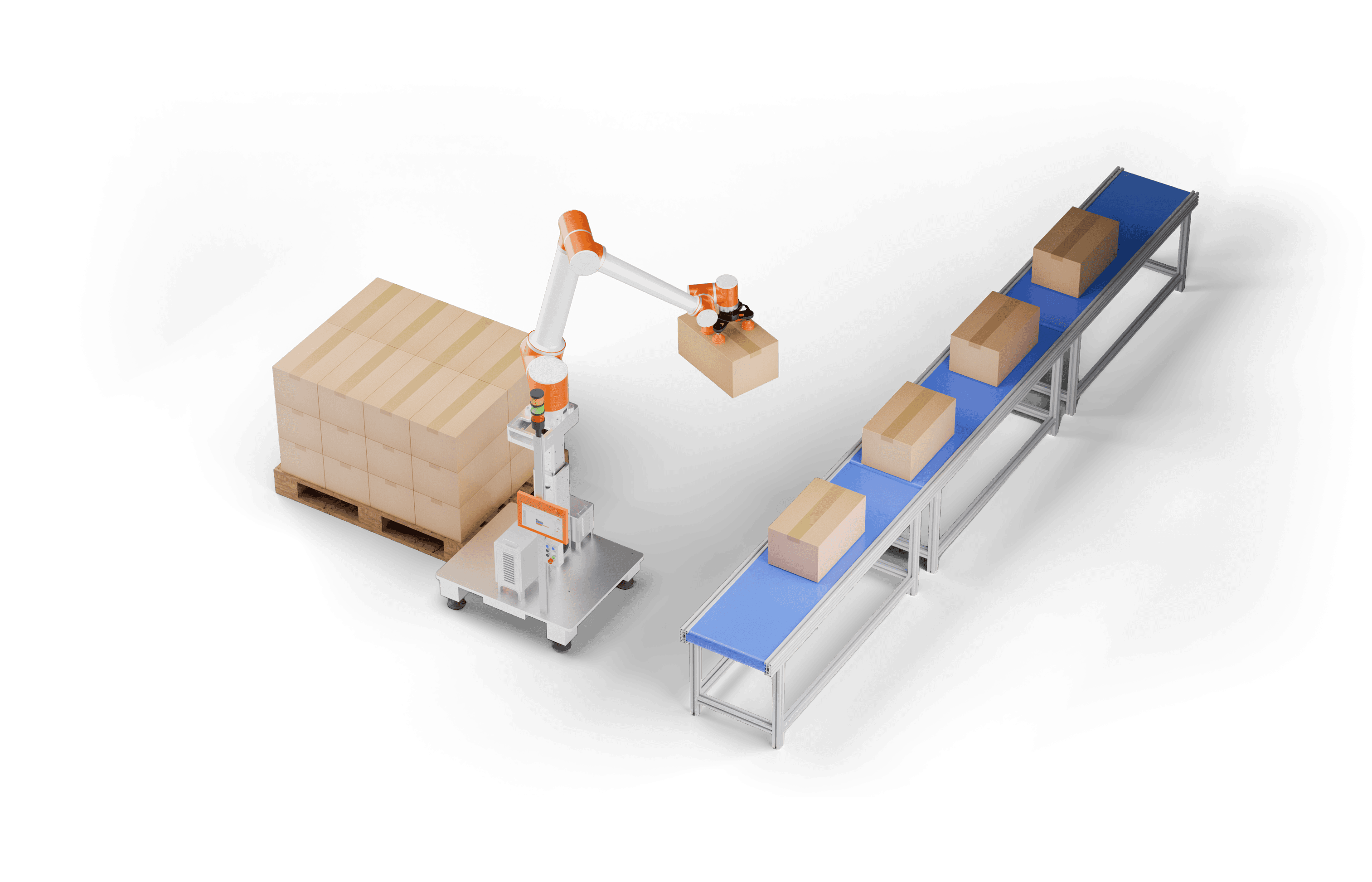

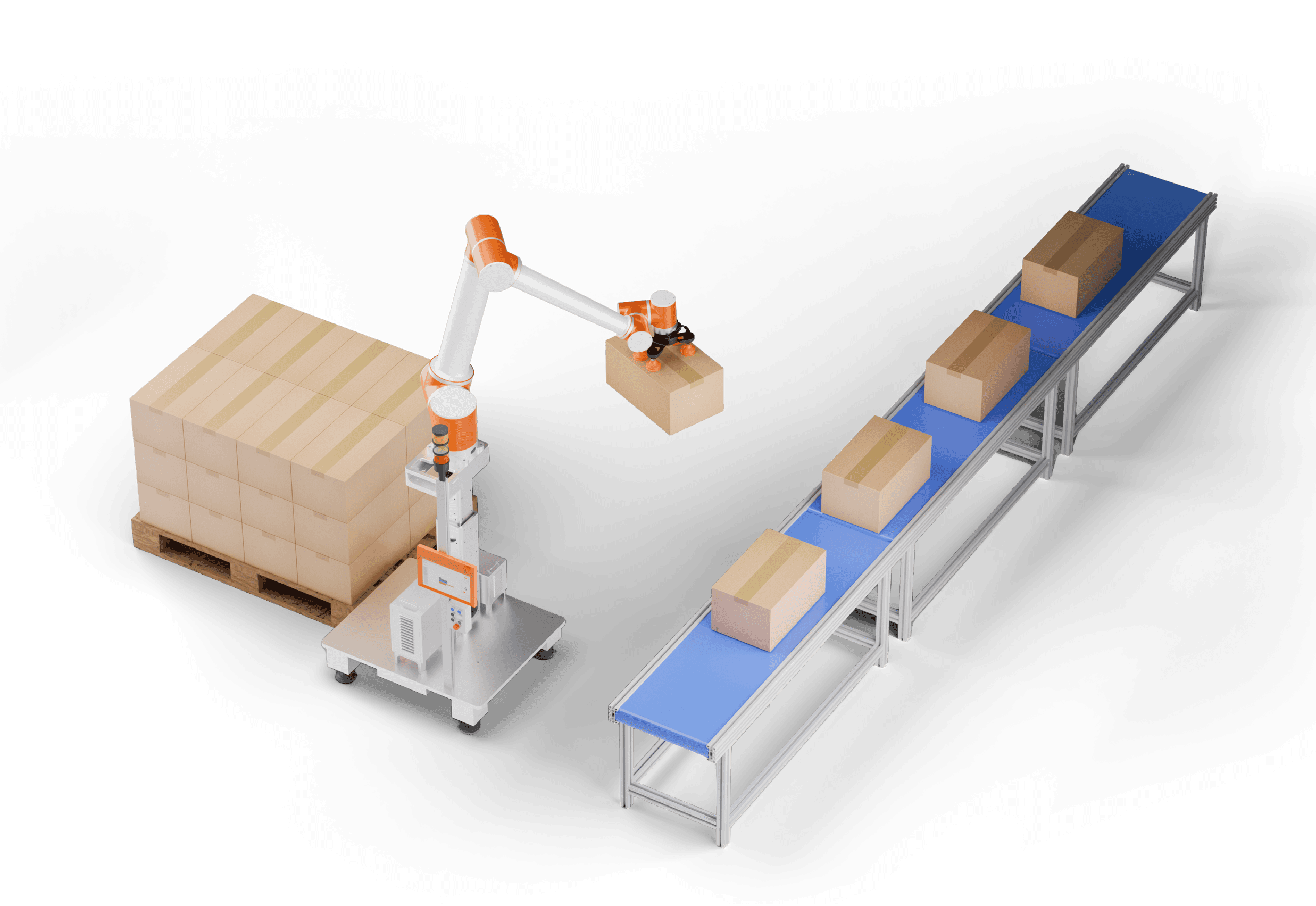

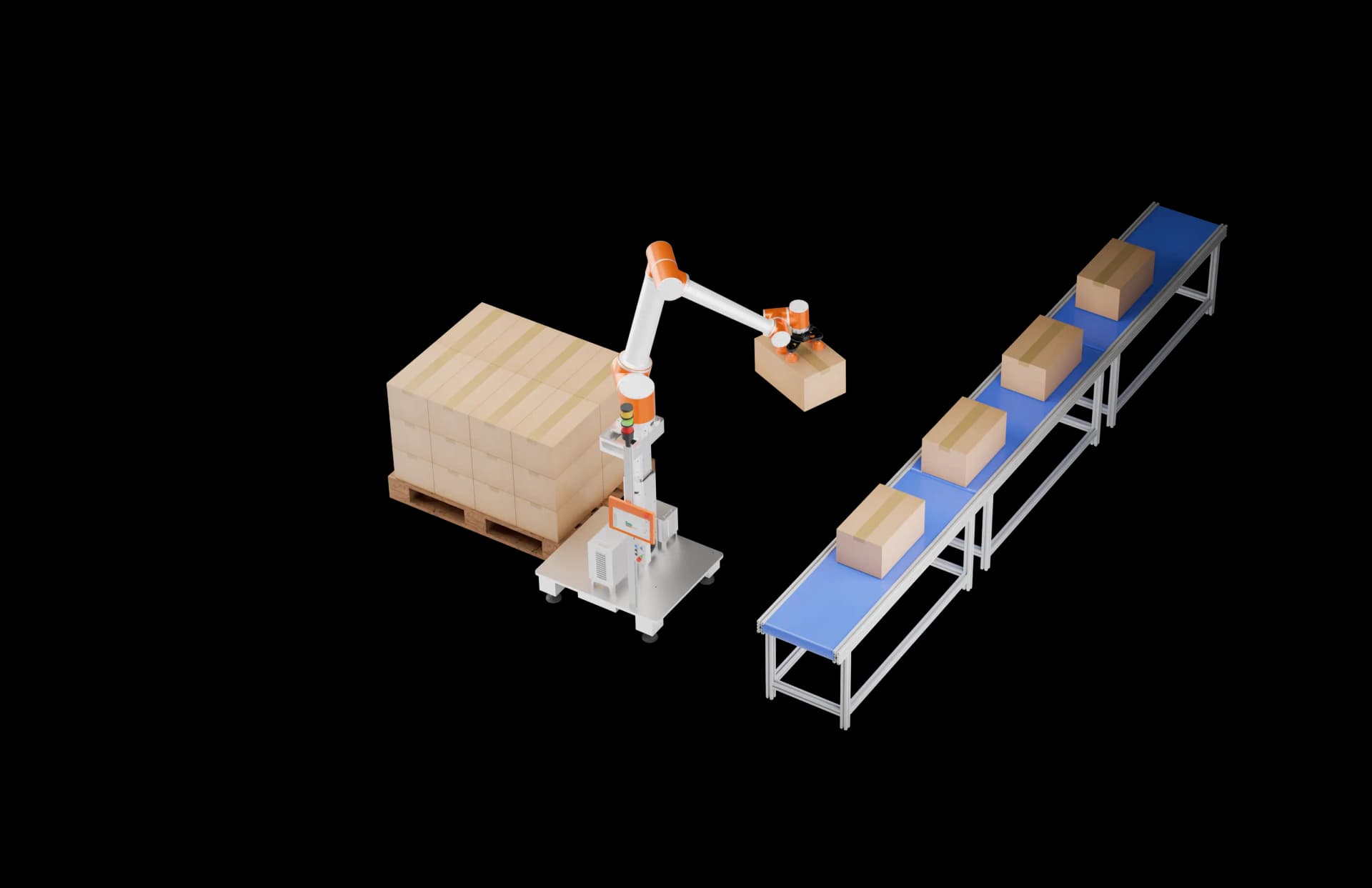

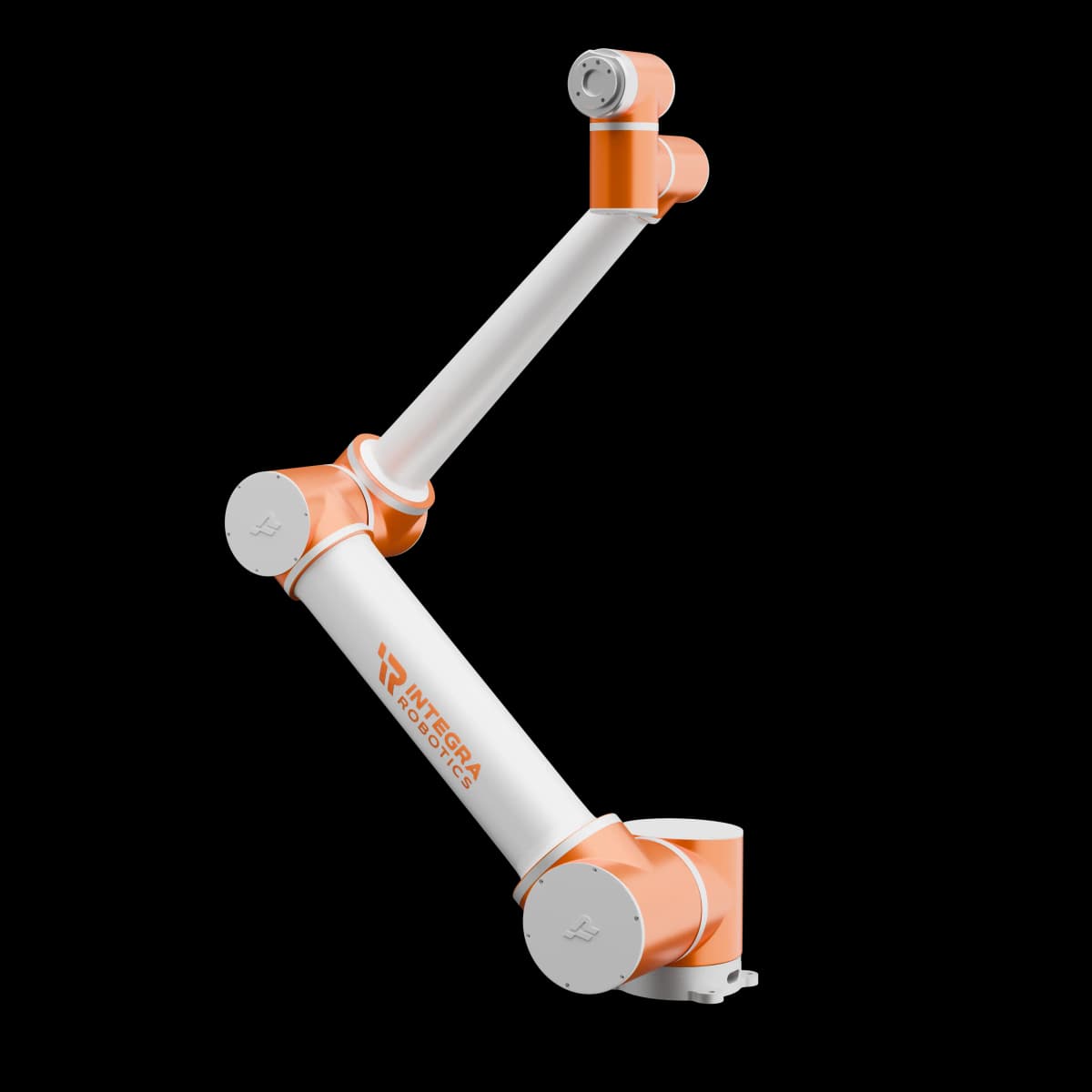

The Integra P20‑R2000 is a 6‑axis collaborative robot built for heavy‑duty, high‑throughput tasks. It handles machine tending, palletizing, large‑part assembly, end‑of‑line packaging, and extended in‑cell transfer with precision and stability.
A 20 kg payload and 2000 mm reach make it ideal for multi-station work and deep machine access.
TECHNICAL SPECIFICATIONS
Complete mechanical, electrical, and repeatability parameters engineered for reliable industrial automation.
Model No.
P20-R2000
Payload
20 kg
Reach
2000 mm
Repeatability
±0.1 mm
Weight
60 kg
Degrees of Freedom
6-DoF
Average Power
500 W
Peak Power
3000 W
IP Classification
IP54 Rating
Installation Orientation
Any (ceiling, floor, wall)
Encoder Resolution
19-Bit
Communication Bus
Ethernet
Brake Type
Friction Brake
SERVICE & SUPPORT
Every cobot we deliver includes practical support coverage—so you can deploy confidently and keep downtime to a minimum.
First-year annual maintenance contract included with purchase.
Fast triage and clear escalation paths to reduce downtime.
Critical spares stocked locally to cut lead time.
Expert technical support available 12 hours a day, 6 days a week.
CUSTOM ENGINEERING
If your application requires a reach or payload outside of our standard models, we can provide a custom cobot engineered for your specific use case. Share your target specs and operating conditions, and we’ll assess feasibility and propose a complete configuration, including mounting, end-of-arm tooling, peripherals, and software integration.
Submit your requirements for a custom quotation, and we’ll confirm the proposed configuration, lead time, and budget range.
Explore more
Discover other collaborative robots for precision automation, machine tending, assembly and inspection.
3 kg payload, 600 mm reach. Ideal for bench tops, tight spaces, and safe collaboration.
View specifications

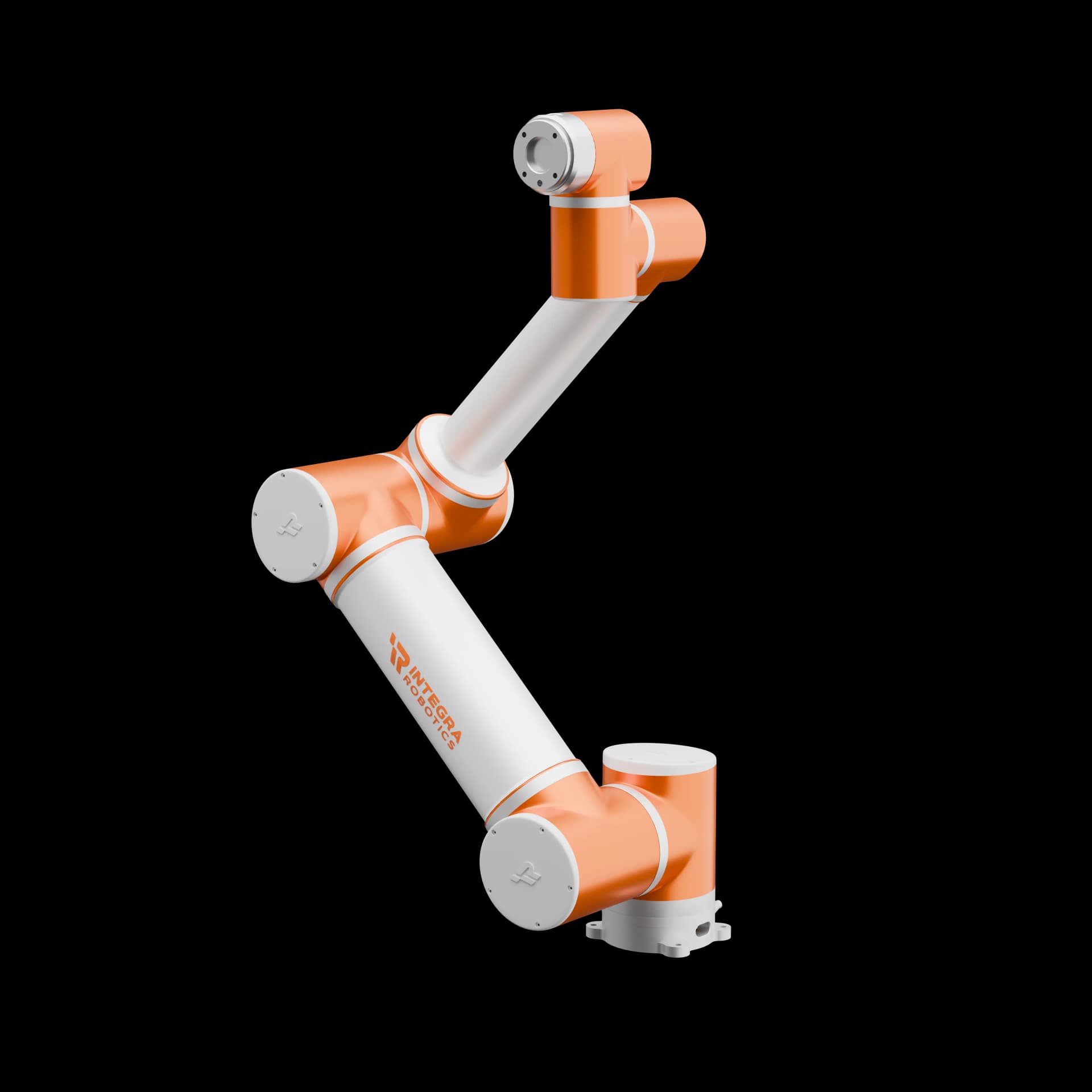

5 kg payload, 900 mm reach, built for medium work envelopes and high‑throughput handling.
View specifications
10 kg payload, 1300 mm reach, ready for heavy handling and expanded work envelopes.
View specifications
TECHNICAL SPECIFICATIONS & CAD
Download the official P20-R2000 cobot datasheet with full joint velocity ranges, wiring specs, and mounting dimensions.
