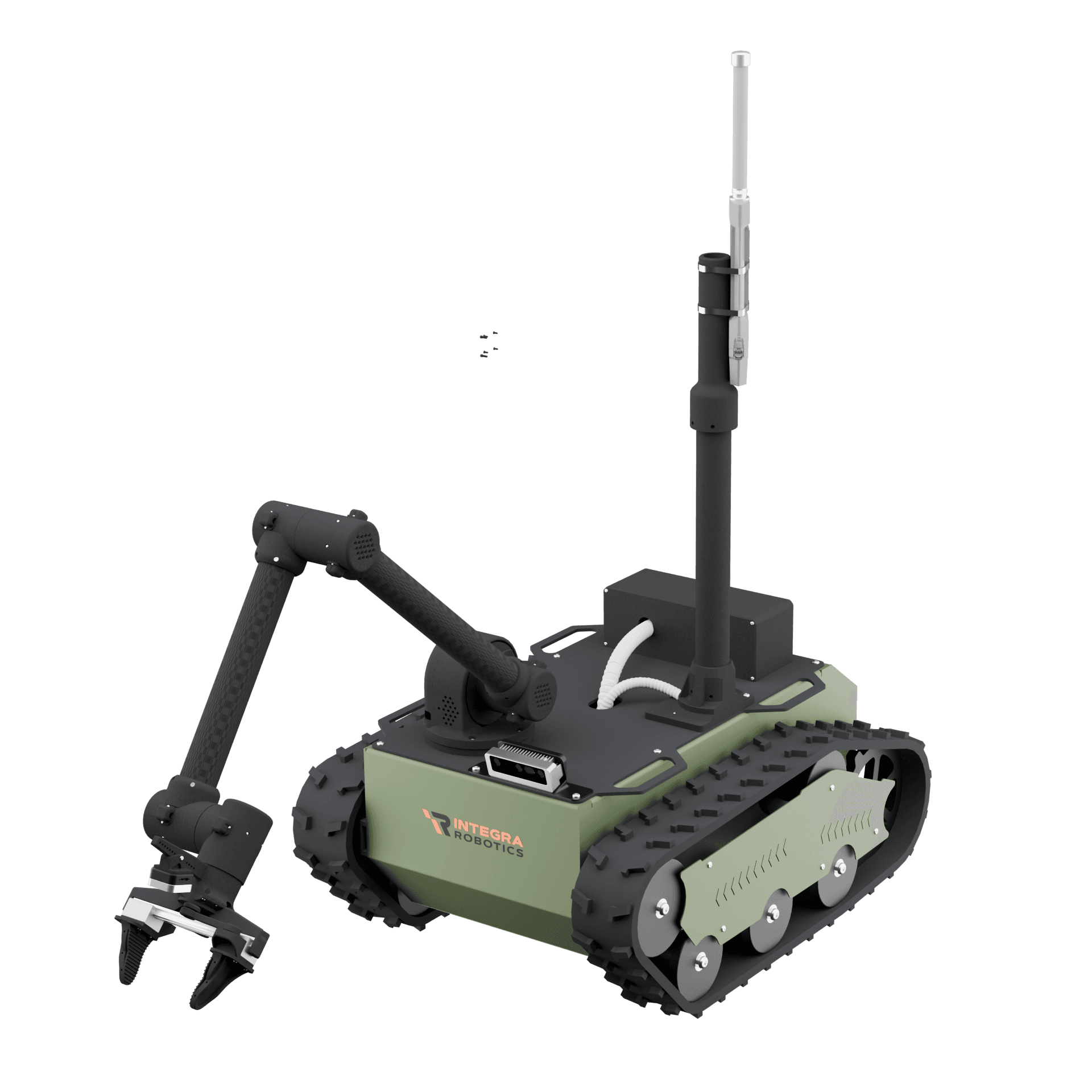

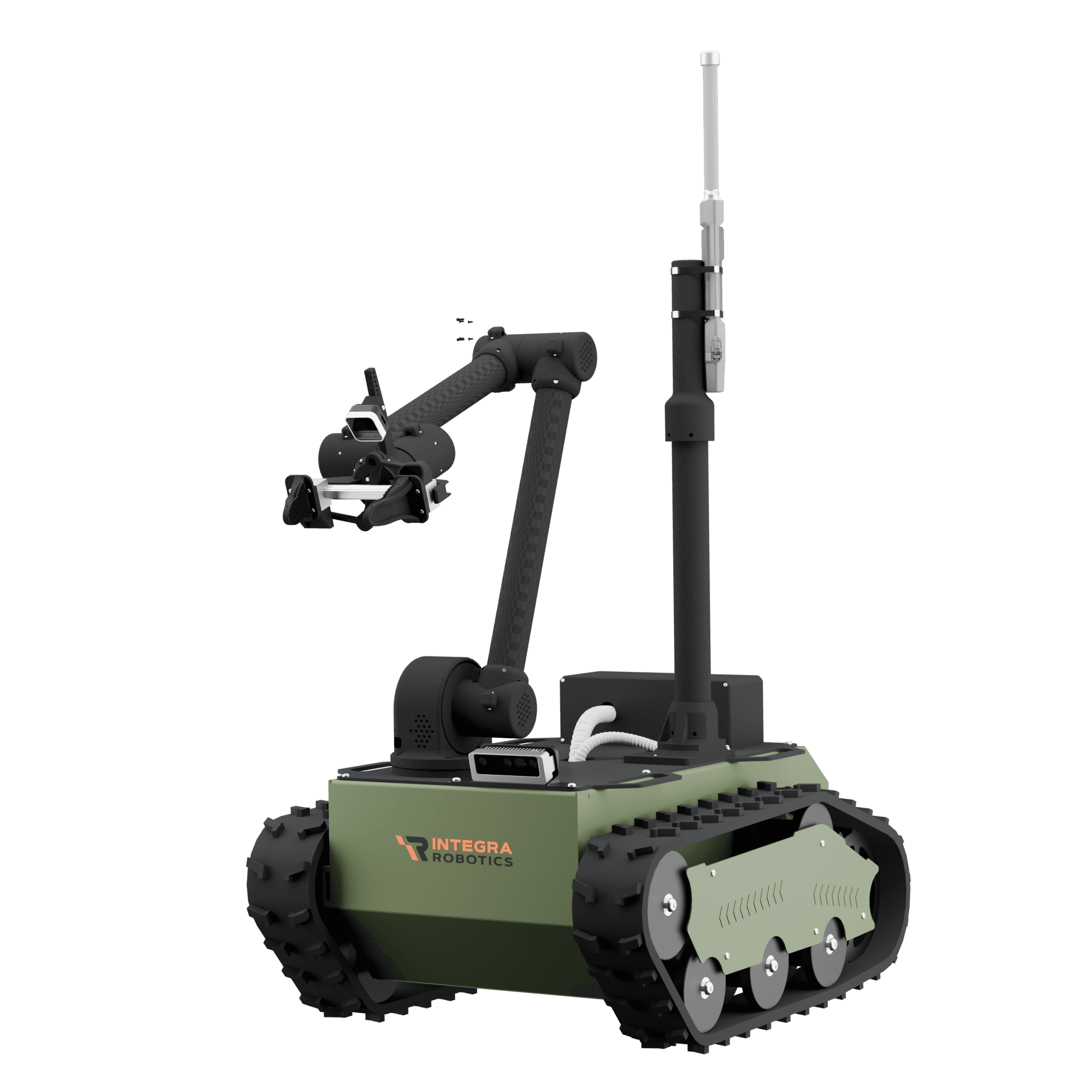

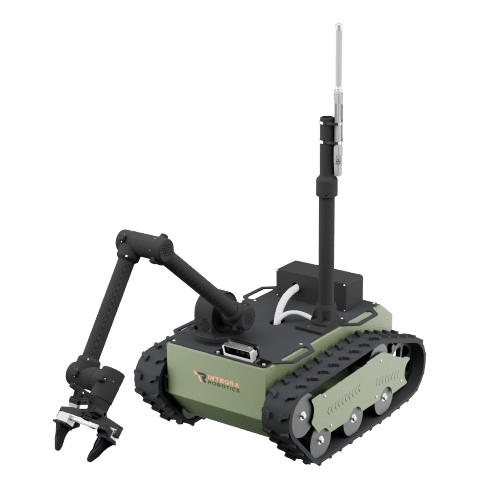

R-ATV · P4-R1300-6D
The Tracked Remote
Manipulation
Platform
The R-ATV is Integra Robotics' purpose-built tracked unmanned ground vehicle for remote handling, payload transport, and precision manipulation in hazardous environments — defence, oil & gas, disaster response, and beyond.
30°
Max Slope
4 kg
Arm Payload
30 min
Min. Runtime
10 km/h
Max Speed
IP67
Ingress Protection
450 m
Comms Range
Technical Specifications
R-ATV Performance
Overview
Chassis
Kevlar-rubber tracked all-terrain chassis
Dimensions (L×W×H)
1200 × 750 × 650 mm
Unladen Weight
85 kg
Payload Capacity
120 kg
Max Speed
10 km/h
Gradeability
30°
Ground Clearance
260 mm
Wheelbase
820 mm
Drive System
Tracked all-terrain drive system
Motor Power
4 × 500 W
Battery
48V / 60 Ah Lithium-ion
Runtime
30 minutes (minimum wireless operation)
Charging Time
3 hours
IP Rating
IP67
Operating Temperature
-20°C to +55°C
Communication
2.4 GHz wireless (450 m LOS / 90 m non-LOS)
Navigation
RTK-GPS + LiDAR SLAM (optional)
Sensors (standard)
IMU, encoders, ultrasonic × 8
Payload Interface
MIL-SPEC 38-pin connector + CAN bus
Autonomy
Teleoperated / Waypoint / Full autonomous
Manipulator System
6-DoF with 2-finger end effector
Manipulator Reach
1,300 mm
Manipulator Payload
4 kg
Manipulator Speed
Up to 0.3 rad/s per joint
Vision System
Dual 720p cameras (127° wide / 87° FOV, day/night)
SERVICE & SUPPORT
Built for operators, not just engineers.
Field-proven in defence inspection, oil & gas, and smart agriculture. The R-ATV removes integration friction so your team can focus on the mission.
Ready out of the box
The R-ATV ships pre-configured with ROS 2 and a full sensor baseline. Connect, power on, and deploy — no days-long integration required.
Follow-me mode
Ultra-wideband and visual tracking allow the R-ATV to autonomously shadow an operator at a safe distance across any terrain.
Open sensor bay
A 38-pin MIL-SPEC payload bay and CAN bus let you mount cameras, LiDAR, gas sensors, or manipulators without custom wiring.
Global support
Dedicated application engineers in India, UAE and Europe respond within 4 business hours. On-site service SLAs available.
Engineered to fit
your application
If your operation demands robots that can traverse unpaved roads, steep embankments, or flooded terrain — the R-ATV was built for you. Its open payload architecture means your existing sensor suite installs in under an hour.
Defence & Security
Oil & Gas
Smart Agriculture
Disaster Response
