P3-R600
3 kg payload, 600 mm reach. Ideal for bench tops, tight spaces, and safe collaboration.
View specifications

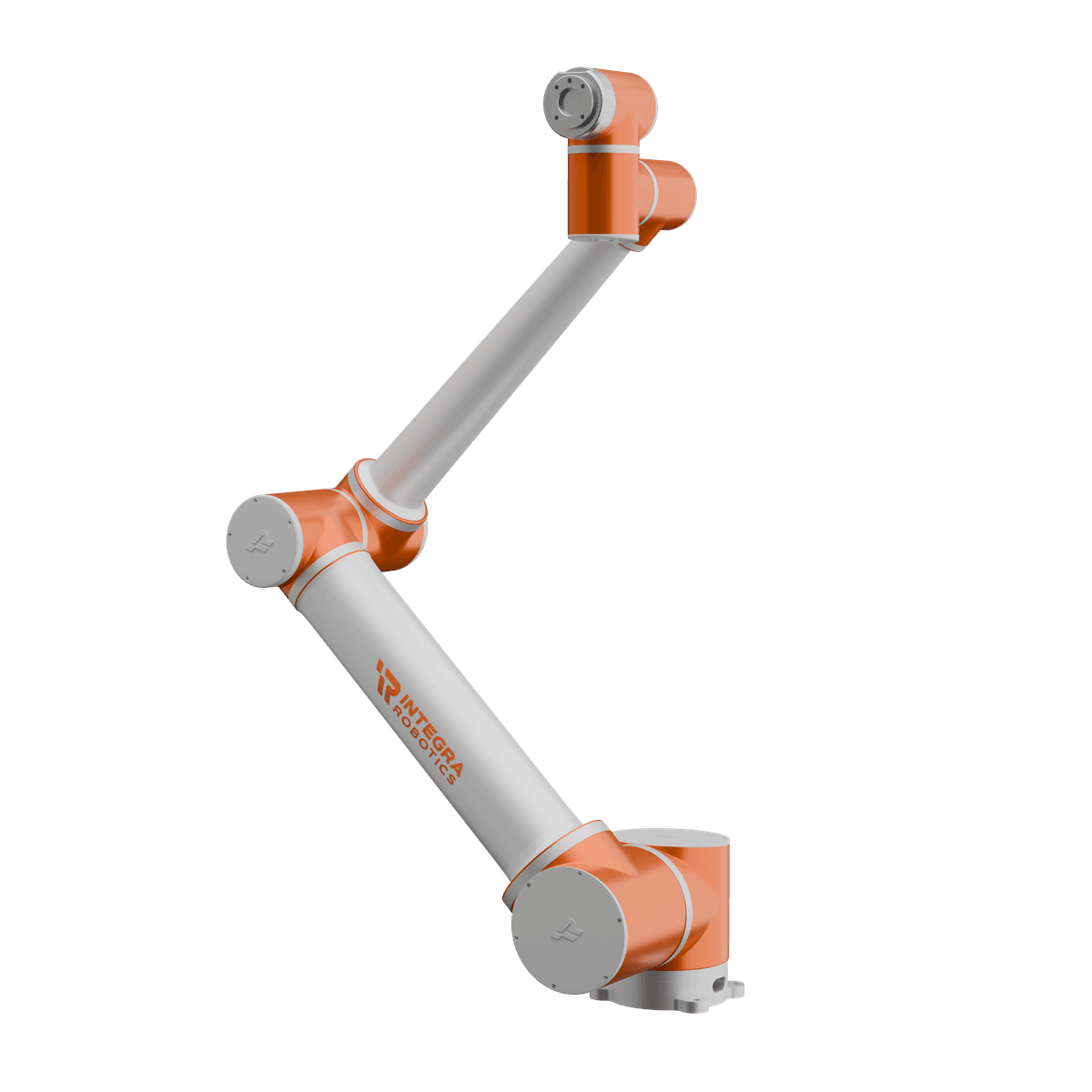

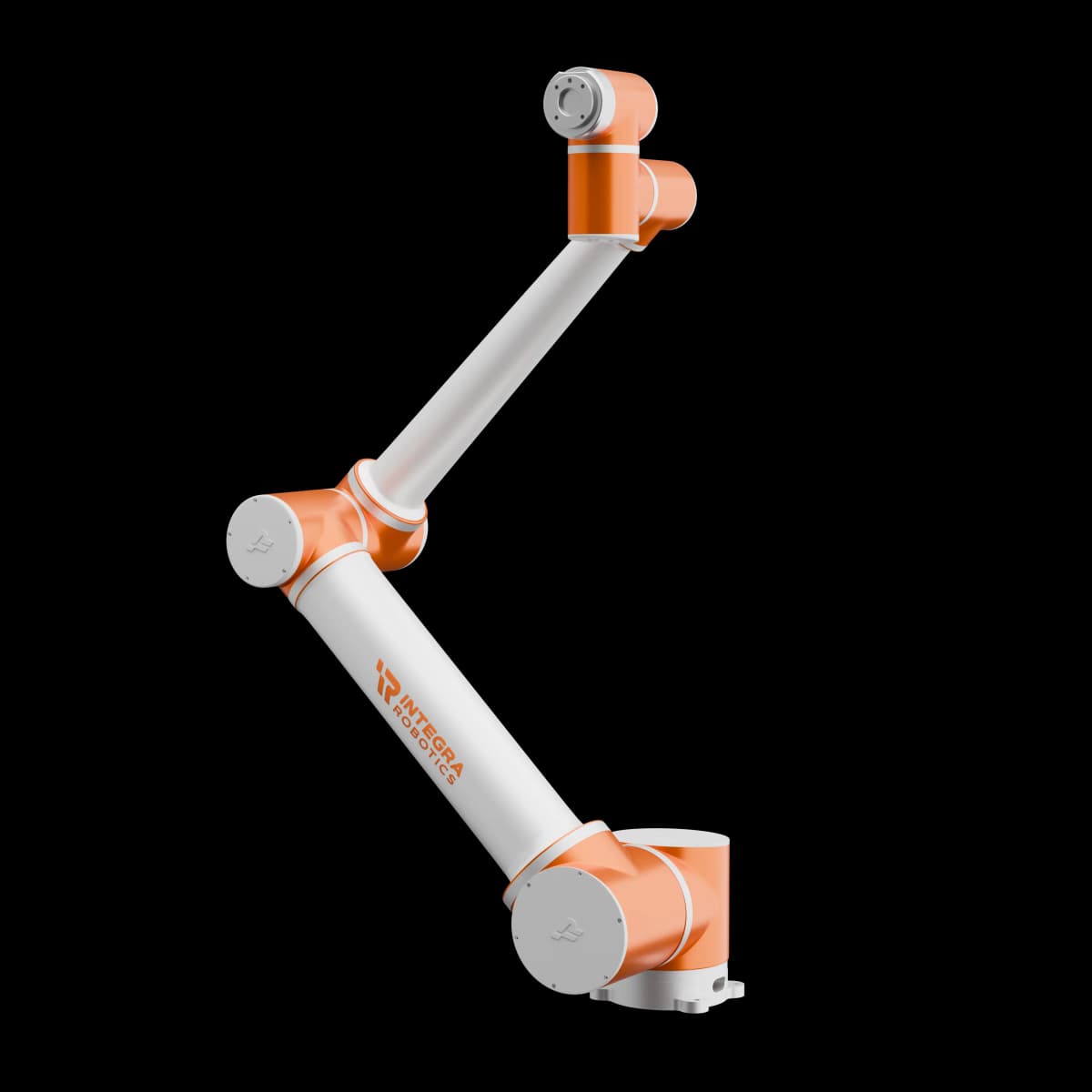

When your application needs a cobot that can handle heavier parts and a larger working envelope, the P10‑R1300 delivers, supporting material handling, machine tending, packaging, dispensing, and inspection.
A 10 kg payload and 1300 mm reach make it ideal for multi-station work and deep machine access.
TECHNICAL SPECIFICATIONS
Complete mechanical, electrical, and repeatability parameters engineered for reliable industrial automation.
Model No.
P10-R1300
Payload
10 kg
Reach
1300 mm
Repeatability
±0.05 mm
Weight
36.5 kg
Degrees of Freedom
6-DoF
Average Power
500 W
Peak Power
2000 W
IP Classification
IP54 Rating
Installation Orientation
Any ceiling, floor, wall
Encoder Resolution
19-Bit
Communication Bus
Ethernet
Brake Type
Friction brakes on all joints
SERVICE & SUPPORT
Every cobot we deliver includes practical support coverage—so you can deploy confidently and keep downtime to a minimum.
First-year annual maintenance contract included with purchase.
Fast triage and clear escalation paths to reduce downtime.
Critical spares stocked locally to cut lead time.
Expert technical support available 12 hours a day, 6 days a week.
CUSTOM ENGINEERING
If your application requires a reach or payload outside of our standard models, we can provide a custom cobot engineered for your specific use case. Share your target specs and operating conditions, and we’ll assess feasibility and propose a complete configuration, including mounting, end-of-arm tooling, peripherals, and software integration.
Submit your requirements for a custom quotation, and we’ll confirm the proposed configuration, lead time, and budget range.
Explore more
Discover other collaborative robots for precision automation, machine tending, assembly and inspection.
3 kg payload, 600 mm reach. Ideal for bench tops, tight spaces, and safe collaboration.
View specifications
5 kg payload, 900 mm reach, built for medium work envelopes and high‑throughput handling.
View specifications
20 kg payload, 2000 mm reach. Built for heavy picks and long reach placement.
View specifications
TECHNICAL SPECIFICATIONS & CAD
Download the official P10-R1300 cobot datasheet with full joint velocity ranges, wiring specs, and mounting dimensions.
